Blackmagic URSA Mini Test Part 3: Day ISO/Finding Native
Welcome to PART 3 of 9 of our Blackmagic URSA Mini 4.6K Film Test series. So far, we have covered underexposure and overexposure of skin tones in a tungsten light interior environment. Today, we’ll see how much ISO noise this camera generates at different ISOs in a Day Exterior environment using natural light. We’ll also find out what the URSA Mini’s native ISO is.
Also, if you’re not already a member, and take your film career to the next level, join Shane’s Inner Circle today!
Coming up, Parts 4-9 will each cover advanced techniques in color grading with these color spaces—which can be difficult to master. My colorist and DIT, Derek Johnson, will take you through our process, explain short cuts, and starting points that will put you on the right track. We will also discuss how you can get the best out of your camera’s sensor during both day and night shoots, along with the accessories it will take to achieve a clean, professional image.
Let’s get started!
DAY ISO NOISE TEST
We are going to find this camera’s soul and take it to its breaking point. And where I start all of my tests is day ISO noise. I do this in the beginning of the day and I want to find out where that noise is. When working with day exteriors, you can really see the noise in all the illuminated spaces, and while you’re dealing with night ISO testing, you’re able to crush that down and make the noise go away.

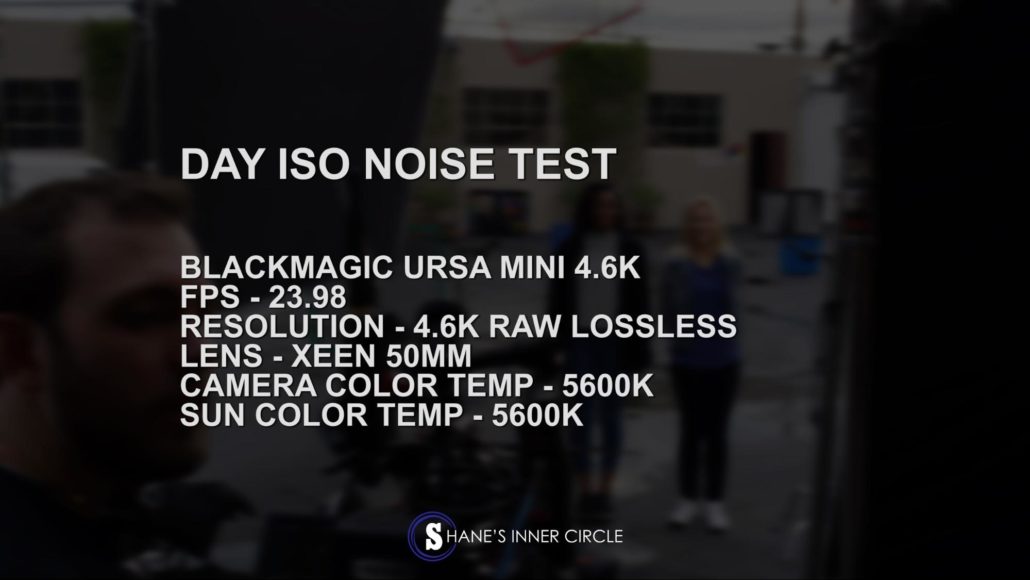

Let’s look at our specs. We have our Blackmagic URSA Mini at 4.6K, we’re at 23.98 fps, our resolution is 4.6K RAW Lossless, our lens is a Xeen 50mm, our camera color temperature is 5600 Kelvin, and our sun color temperature is also 5600 Kelvin. Now this type of test is not so much of a creative process. We have to be very methodical and very specific.
Alright, let’s scrub to our first image. You’re going to see this footage ungraded and then we’ll put a grade on it. So this first image is ISO 200 and the second is the same image with the grade from an ISO 800 image slammed onto it.
Now, right off the bat, what I’m seeing with the ISO 200 is that it’s crunchy; it’s got really good, very saturated color. The blacks are much deeper and the image really pops. This is a lower ISO so it’s very clean and we’re getting some very nice attributes, but we’re definitely losing detail on the blacks.
Now, this is something I did on Need for Speed—I shot the Alexa at ISO 320. By going in that direction, you actually lose some detail on the blacks. I was loving that for day exteriors. There’s sometimes so much fill that’s coming around whether it’s bouncing off the ground or the sky or wherever, so I really like to use a lower ISO to help in that process and to snap the image up. Now I think 200 might be just a little bit too much. Let’s look at the 400 to see how that responds and performs.
I chose to have Monette and Chelsea on this test so we could get our darker skin tones as well as lighter skin tones and dark hair vs. light hair, so we could see our clip factor and really take the camera to its breaking point.
Alright, here’s our ISO 400 both ungraded and graded. With ISO 400, I was able to open those shadow areas up a little bit. For this lighting setup I have a 12×12 Ultra MatthBounce which is pushing in and keying Monette and Chelsea’s faces, and then I have 2 12×12 solids on the left side of camera that are creating a negative fill.
Looking at this, I really like that ISO for day exteriors. I’m seeing enough into the shadow areas, it has nice colors, and it’s not so chroma and crunched. The fill side still has just enough detail to pull out and it’s a very nicely balanced image.
Now we’re going to come up on our 800 ISO. With this image there’s a very nice grade and you’re seeing even more detail in the shadows, so if you have those extreme scenarios where you’re dealing with a lot of backlight, I would recommend going to 800 ISO to gain a little more in the overexposure as well as the underexposure.
This is a fairly balanced image. The colors aren’t so saturated but because I’m seeing more in the shadow areas, the image is a little flatter. You can also see that the blacks are a little bit grayer. What I’ve found is that 800 ISO is the true native on this camera. It seemed like it gave me the most range in each direction.
Now we’re going to go to ISO 1600. For our ISO day noise test, this is where we want to start to look for that fixed pattern noise. Right off the bat, I’m seeing it in all of the glass in the background. I’m seeing noise under Chelsea’s chin and while it seems like you’re getting more detail in the shadows, in actuality, the image all of a sudden has a gauze caused by the noise lifting them. Is 1600 a nice texture for your project if you’re going for a little more of that noise? Absolutely. But you can see how clean 200 is compared to 1600. It snaps and has a great 3-dimensional, balanced quality to it.
The downside for 200 is that it’s may be just a bit too saturated, so that’s why I thought 400 fell in very beautifully for daylight ISO. If I were using the URSA Mini for day exteriors and I didn’t have to deal with extremes on an overcast day like when we did this test, I would use 400. We weren’t able to do our backlit test because the sun was going in and out from behind clouds creating a very flat environment. We shaped it with our negative fill at ISO 400, and we were able to crunch the fill level and clamp the contrast down more. If sun is out and I have a blazing backlight, I’m definitely going to the camera’s native ISO 800. The real benefit of these tests isn’t just finding out what this camera can and cannot do while being pushed to its limits, it’s finding unique looks that you can use to assist you in your own storytelling.
What Have We Learned?
So now we’ve gone over how the Blackmagic URSA Mini captures images at ISO 200, ISO 400, ISO 800, and ISO 1600. We’ve covered a lot of ground so let’s have a quick recap of what we’ve learned.
- ISO 200
- Great color and contrast, subject really pops from the background
- Great for shooting day exteriors when extreme sun and lights are not a factor
- Great detail but can be a bit too saturated at times
- ISO 400
- Richer detail in shadows
- Great for shooting day exteriors when extreme sun and lights are not a factor
- ISO 800
- The camera’s native ISO
- Ideal for shooting in bright sun or with blazing backlights
- Less saturated colors but grayer blacks
- ISO 1600
- Creates a “gauze” on the image
- Very noticeable increase in noise which is not necessarily a bad thing if your project calls for it
Sign up for Shane’s Inner Circle for access to full articles like these. Don’t miss out!
This concludes PART 3 of our Blackmagic URSA Mini 4.6K Film Test. Let’s have a brief recap of what we’ve covered so far:
In PART 1: We went over Overexposure and Skin Tones
In PART 2: We switched course to Underexposure and Skin Tones
In PART 3: We tested DAY ISO and finding the URSA Mini’s native ISO
The Blackmagic URSA Mini is definitely a compelling camera that puts out a great image at an affordable price. And best of all, we’re just getting started, baby! We’re going to continue to review and analyze what this camera is made of. We’re going to break this thing apart and find out what makes it tick.
By the time we’re done with this series, you’re going to have a master education in the Blackmagic URSA Mini. Please, as always, share your questions and concerns in the comment section below.
Next up on our list is PART 4 of our 9 PART series! Be on the lookout for PART 4 coming soon in early 2017! For a more in depth analysis of all these PARTS, as well as tons of other resources that will elevate your career as a filmmaker, become a member of Shane’s Inner Circle today!
