Ballast

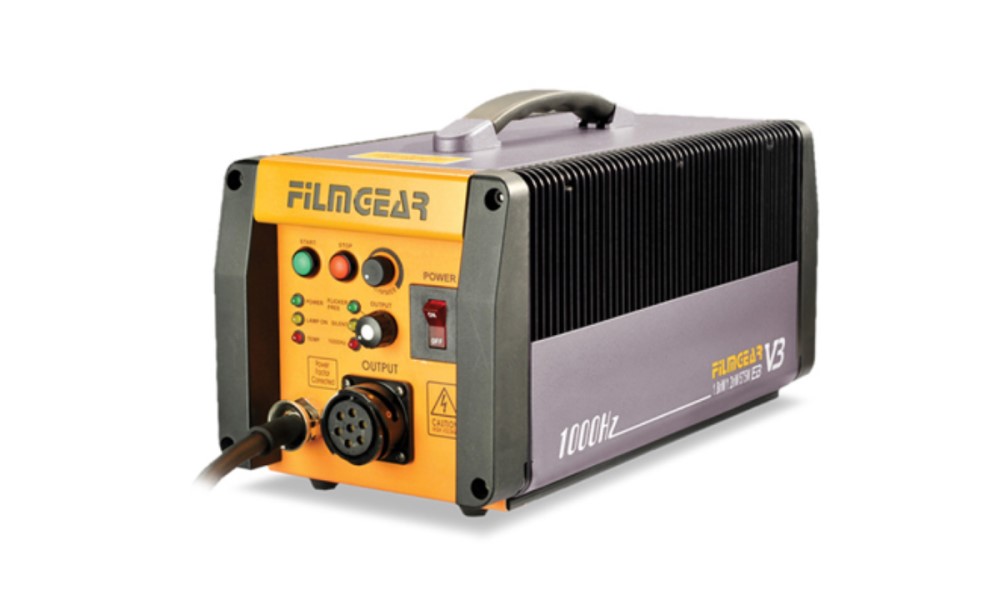

In motion picture lighting, a ballast is an external power control device required for specific types of lighting fixtures. While traditional tungsten lights plug directly into a wall outlet, more complex lights like HMIs (Hydrometal Halogen Large-Arc), Fluorescents, and many LEDs cannot function on raw house power. The ballast acts as a sophisticated intermediary. It regulates the electrical current, manages voltage, and ensures the lamp receives a stable, consistent flow of energy. Without a functional ballast, these specialized bulbs would either fail to ignite or draw so much power that they would instantly self-destruct.

How a Ballast Works

The primary job of a ballast is to provide a high-voltage “strike” to start the light and then a steady “operating” current to keep it running.

For HMI lights, the ballast must jumpstart an electrical arc between two electrodes inside a gas-filled globe. Once the arc is established, it immediately limits the current. This prevents the lamp from overheating. Additionally, many modern ballasts act as a converter. They take the Alternating Current (AC) from a generator or wall outlet and transform it into Direct Current (DC) or a highly regulated square-wave AC. This transformation is vital for maintaining consistent color temperature and preventing mechanical hum.

Preventing Flicker in Cinematography

One of the most important features of a modern electronic ballast is its ability to eliminate flicker. Standard household electricity fluctuates at 60Hz (in the US) or 50Hz (in Europe). While the human eye cannot see this pulse, a high-speed cinema camera certainly can.

If the camera’s shutter speed does not align perfectly with the power frequency, the resulting footage will contain distracting dark bands or strobing. Professional ballasts feature “flicker-free” or “high-speed” modes. These modes increase the frequency of the electrical pulses to thousands of cycles per second. Consequently, cinematographers can shoot at high frame rates for slow-motion sequences without worrying about light fluctuations ruining the shot.

Dimming and Control

Beyond power regulation, the ballast serves as the “brain” of the lighting fixture. Most ballasts feature a control panel that allows the gaffer or electrics team to adjust the light’s intensity.

On an LED ballast, this often includes DMX ports, which allow the light to be controlled remotely from a lighting console. For HMI units, the ballast usually includes a dimming knob. However, users should note that dimming an HMI often shifts its color temperature toward a “warmer” or more “green” hue. Therefore, they must be used carefully to maintain the visual integrity of the scene.

Ballast: Summary of Best Practices

Working with ballasts requires specific safety and technical knowledge:
