Back Projection

Back projection (also known as rear projection) is a classic in-camera visual effect. To achieve this, a production places a translucent screen behind the actors. A projector then stands behind that screen and beams a pre-recorded background image onto it. The actors perform in front of the screen while a camera captures both the live action and the background simultaneously. This technique allows filmmakers to place characters in moving vehicles or distant locations without ever leaving the soundstage.

The “Golden Age” of Driving Scenes

Back projection was a staple of Hollywood’s Golden Age. If you watch a classic film from the 1940s or 50s, you will likely see this in action during driving sequences. Because recording high-quality dialogue in a moving car was technically difficult and dangerous, studios preferred the controlled environment of a stage.

The crew would “shake” the car to simulate road movement. Meanwhile, the background screen showed footage of a street or highway. While effective for the time, these shots often had a distinct “look.” The background was usually slightly blurrier, less bright, or had a different grain structure than the foreground actors.

The Technical Challenge: Synchronization

Executing a successful back projection shot required perfect technical precision. The main challenge was shutter synchronization.

If the camera shutter and the projector shutter were not perfectly in sync, the background would flicker. To solve this, the camera and the projector were physically or electronically “interlocked.” This ensured that the camera captured the background at the exact moment the projector’s shutter was open. If the timing was off by even a fraction of a second, the illusion would fall apart, resulting in dark bars or strobing on the screen.

Back Projection vs. Front Projection

As technology evolved, front projection began to replace back projection. In front projection, the projector sits in front of the actors, often reflecting off a two-way mirror and a highly reflective “retro-reflective” screen.

Front Projection | 2001: A Space Odyssey

Front projection generally provided a brighter and sharper image than back projection. However, back projection remained popular because it was easier to set up in small spaces. Since the projector was hidden behind the screen, the actors could move more freely without casting shadows on the background.

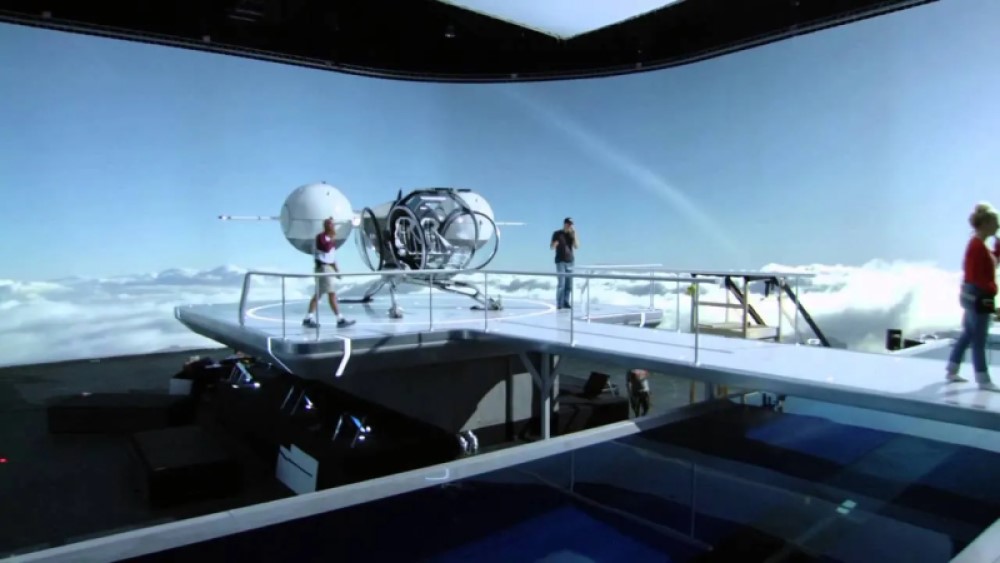

Rear Projection | Oblivion

The Modern Evolution: LED Volumes

For many years, the industry considered back projection “outmoded.” Filmmakers moved toward blue screen and green screen processes because they offered more flexibility in post-production.

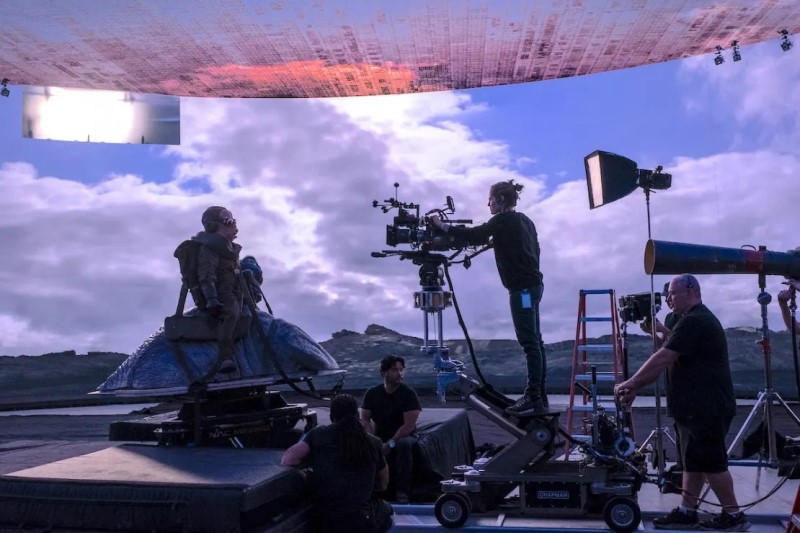

However, we are currently seeing a massive resurgence of the philosophy behind back projection. Modern LED Volumes (like those used on The Mandalorian) are essentially high-tech versions of rear projection. Instead of a projector and a screen, filmmakers use massive LED walls that display high-resolution, real-time backgrounds. This provides the same benefit as the old technique: it creates realistic lighting and reflections on the actors directly in the camera.
