VFX Mapping in Camera Prep: Guide to Shooting Grids
From the Lesson: Music Video Camera Prep Part of the Series: Making a Music Video (Presented by Filmmakers Academy & Craterr)
In the modern landscape of filmmaking, where practical sets often merge with digital extensions, LED walls, and complex visual effects, the line between production and post-production has blurred. One of the critical bridges between these two worlds is established during camera prep.
In our new course, Making a Music Video, we break down every stage of production—from the director’s pitch to the final edit. A standout lesson in the Camera Prep module focuses on a tedious but absolutely vital task: VFX Mapping.
Shane Hurlbut, ASC and Derek Edwards take you inside the rental house to demonstrate why shooting distortion grids is no longer optional—it’s the blueprint the VFX team needs to seamlessly integrate their work with yours.
Shooting Grids and VFX Mapping
“This is where VFX takes it to a whole other level,” says Shane Hurlbut, ASC.
With the rise of AI, virtual production, and LED volumes, the visual effects team requires precise data on how your chosen lenses behave.
Every lens has a unique fingerprint. They distort, bend, and breathe in specific ways. Anamorphic lenses, for example, change their distortion characteristics as you rack focus from near to far. If the VFX team doesn’t understand these physical anomalies, their digital assets won’t match the optical reality of your footage.
“I just got off a movie that had a ton of VFX work, and we spent over a week shooting grids,” Shane shares. “Without these grids, the VFX team is literally in the middle of nowhere. They don’t know where to start, and they’re going to make calculations based on guessing games.”
While the industry is moving toward “smart glass”—lenses that automatically record metadata like focus distance, f-stop, and motion acceleration—shooting physical grids remains the standard for ensuring rock-solid VFX integration.
The Importance of Distortion Grids

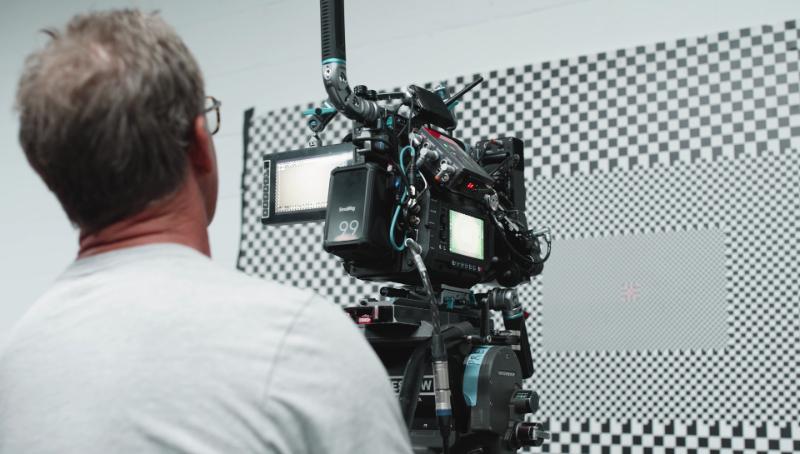

Derek Edwards, a seasoned 1st AC, emphasizes that the first step to successful mapping is the quality of the grid itself. You cannot use a flimsy, warped chart.
“It has to be flat,” Derek advises. “If you’re shooting a distortion grid and it’s curved, that’s not going to help special effects.”
He recommends taping the grid securely to a wall to ensure there is no bowing.

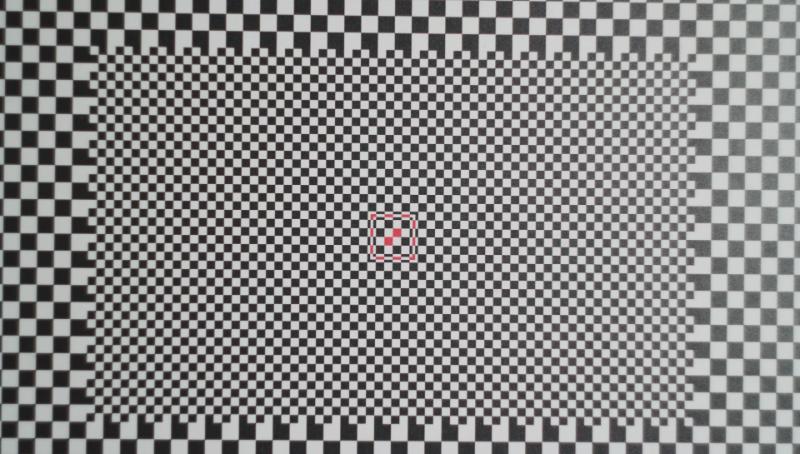

The goal is to provide the post-production team with a reference map for every lens at various distances. By filling the frame with a perfectly flat grid, the VFX artists can analyze the lines to see exactly where the lens curves the image. This allows them to “undistort” the footage, apply their effects, and then “redistort” it to match the lens character perfectly.
The Detailed Lens Mapping Process
Mapping is a systematic process. You cannot skip lenses; every single piece of glass in the kit must be documented. Here is the workflow Derek describes:
| 1 | Set the Camera | Ensure the camera is perfectly level and perpendicular to the grid center. |
| 2 | Fill the Frame | Move the camera to a distance where the grid fills as much of the sensor as possible. |
| 3 | Find Critical Focus | Make sure the grid is tack sharp. |
| 4 | The Rack Focus | Slowly rack focus from infinity to close focus, then back to sharp. Do this twice. |
“In post, they’re going to see the lenses breathe,” Derek explains. “They’re going to see the distortion all the way through.”
This is crucial for shots where characters move through the scene, requiring the focus—and consequently the distortion—to shift.
Practical Tips for Lens Mapping
Precision is the enemy of laziness in camera prep. When leveling the camera to match the grid, Derek warns against relying on smartphone apps.
“Spend the $20 to $25 and get a real tool,” Derek says, referring to a physical digital level or inclinometer. “iPhones are the lazy way. Get a real tool so you can be precise.”
| The Slating Protocol: Before the rack focus begins, a slate must be brought into the frame. It needs to contain: |
-
Lens Focal Length
-
Distance to the chart
-
T-Stop
-
Camera Settings (Resolution/Sensor Mode)
This ensures that when the DIT or VFX editor opens the file, they know exactly what optical scenario they are looking at without guessing.
Final Preparations and On-Set Focus
Shooting grids is often the final step in a comprehensive camera prep. By this point, you have already checked your focus marks, built the rig, managed your cables, and ensured the batteries are healthy.
“This is the continuous routine of what they do at a prep,” Derek notes.
While it may seem repetitive, this discipline guarantees that when you arrive on set, the camera is a working tool, not a problem to be solved.
Derek reminds filmmakers to be mindful of time.
“We are on the clock. If you’re going into overtime, talk to production. Don’t go into OT doing this kind of stuff if they don’t want to pay for it.”
However, for any project involving visual effects, skipping this step is not an option—it is an insurance policy for the final image.
The Bottom Line
VFX Mapping is the technical foundation that allows creative magic to happen in post-production. By taking the time to shoot proper distortion grids, you are saving the production money and ensuring your cinematography retains its integrity even after heavy digital manipulation.
