URSA Cine 12K LF Latitude Tests & Sensor Tech
We’ve explored the build, specs, features, and controls of the Blackmagic URSA Cine 12K LF in the previous parts of our deep-dive demonstration. (Check out Parts 1, 2 & 3…) Now, we arrive at the crucial test: How does this camera really handle light?
In this final segment, Shane Hurlbut, ASC, and senior colorist Dave Cole push the sensor to its absolute limits in a real-world over/under exposure test. Afterward, Shane shares his insights on the revolutionary sensor technology that makes this performance possible and discusses the camera’s potential impact on the industry.
Keep reading to see how the camera renders detail, handles contrast, and captures emotion across a vast exposure range. Or watch the video below and prepare to go down the rabbit hole!
This article covers the final segment of the demo. To get the complete picture, including the initial impressions, ISO/compression tests, and detailed feature breakdowns from Parts 1, 2, and 3, watch the full FREE demonstration!
CHECK OUT THE FULL DEMONSTRATION!
THE OVER/UNDER TEST: PUSHING LATITUDE TO THE LIMIT
To truly understand a camera’s dynamic range, you need to see how it performs in a challenging, real-world scenario. Shane and Dave designed a cinematic “oner” scene featuring actors moving through an office space with extreme contrast — from deep shadows (-6 stops under) to bright window highlights (+6 stops over). This allowed them to analyze how the URSA Cine 12K LF latitude captured detail and rendered tones across its entire latitude.
SHADOW PERFORMANCE: SEEING INTO THE DARKNESS

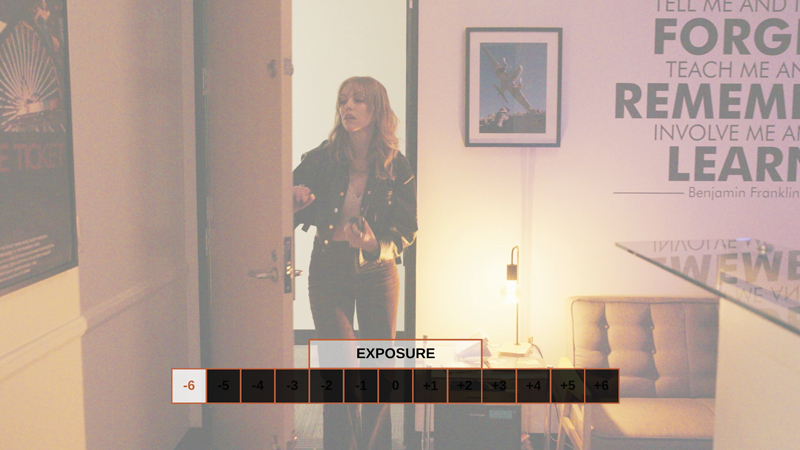

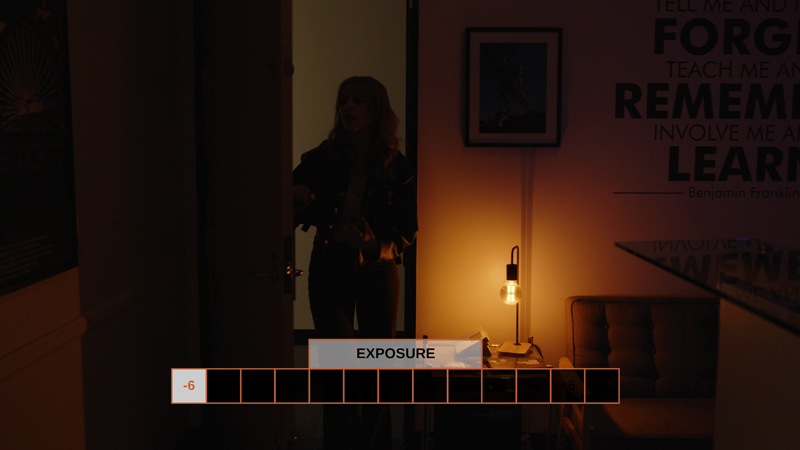

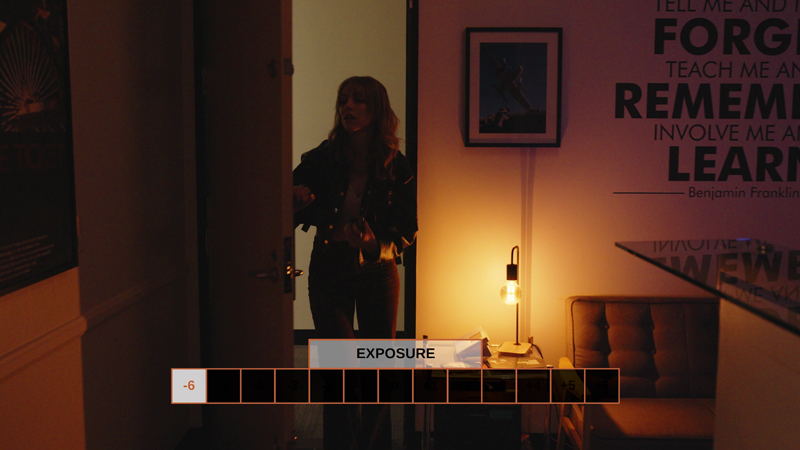

The test began with the actress entering a dark area, exposed at a remarkable six stops under. Even at this extreme underexposure, Dave Cole noted that significant information was still present in the file.
 |
 |
 |
Without Correction | Pushing Up Exposure in DaVinci | With Correction
When pushing the exposure up in DaVinci Resolve, detail emerged, though accompanied by expected noise. Crucially, the fall-off into black was smooth, avoiding harsh clipping or clamping.

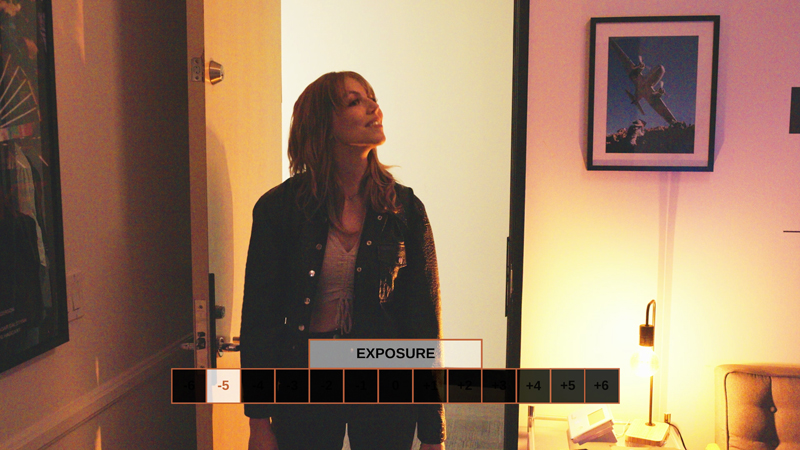

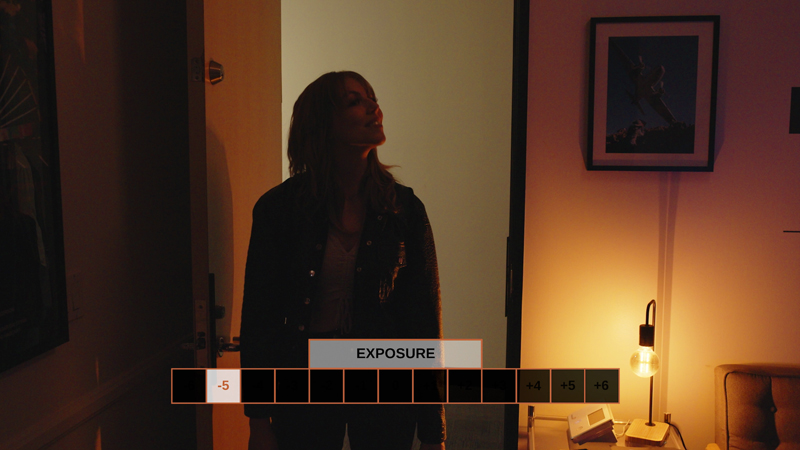

Even at five stops under, the noise character remained pleasing, with minimal problematic colored noise.
 |
 |
Without Correction | With Correction

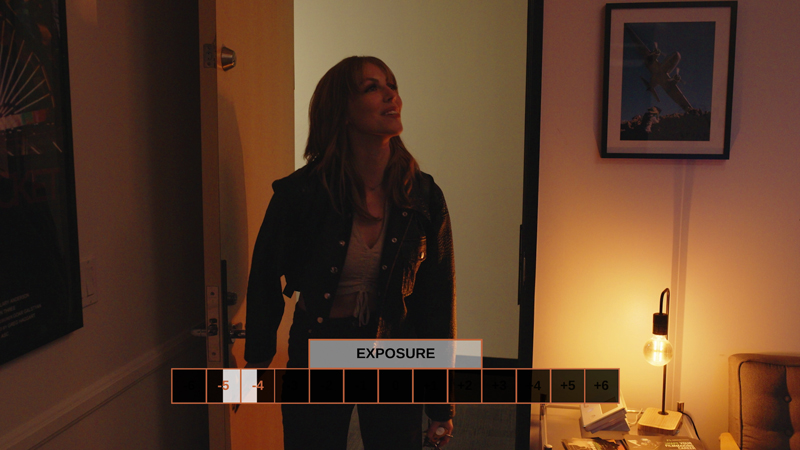

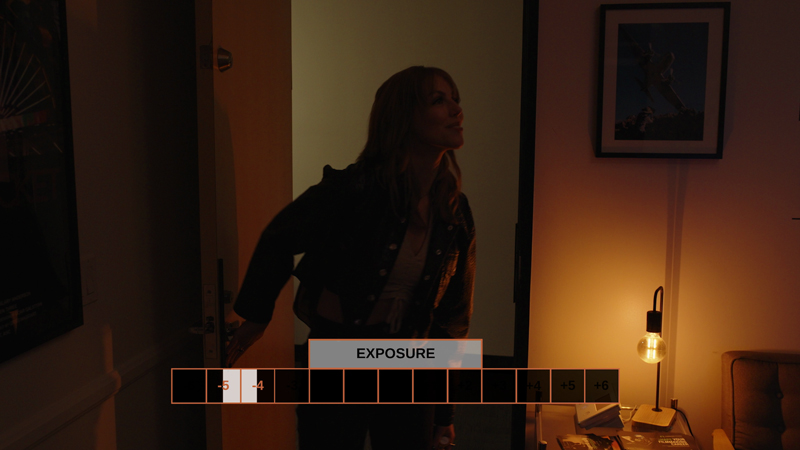

Pushing the image just two or three stops revealed a usable, moody image with detail. At four-and-a-half stops under, the image looked remarkably clean.
 |
 |
Without Correction | With Correction

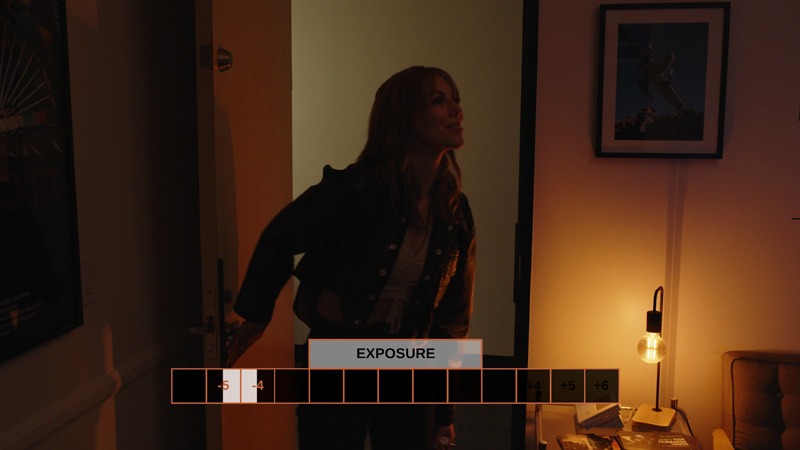

Here’s the shot with Dave’s correction reduced by 50% to retain more of the shadows…
And here’s the shot with Dave’s correction reduced by another 25%…
This here, demonstrated the sensor’s impressive ability to retain information deep in the shadows. The URSA Cine 12K LF offers incredible flexibility if needed in post. As Shane observed earlier, while the sensor “loves light,” it handles underexposure gracefully.
HIGHLIGHT PERFORMANCE: HOLDING ONTO THE BRIGHTS

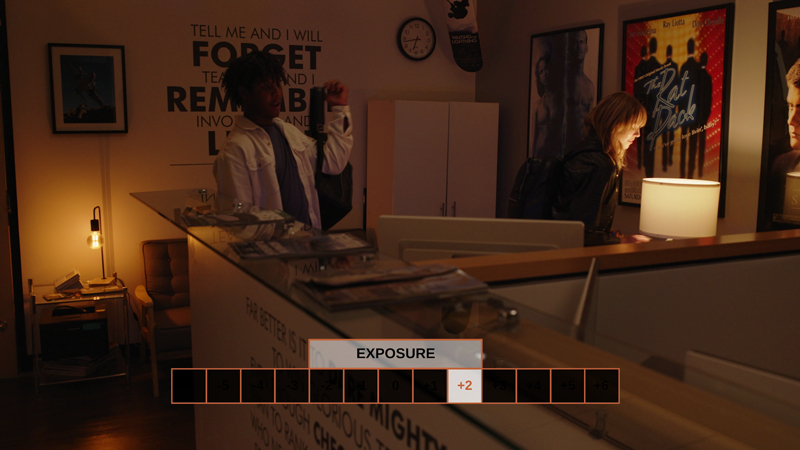

As the actors moved towards brighter areas, the test pushed into overexposure. At two and three stops over, the camera handled the highlights beautifully, rendering skin tones naturally with a pleasing roll-off.
 |
 |
Without Correction | With Correction
Even the practical lamps in the scene held detail well, avoiding the harsh, electronic clipping often seen in digital highlights.

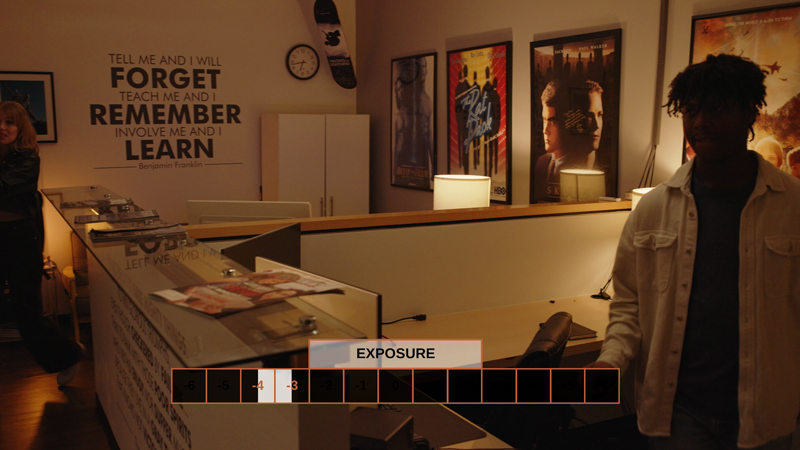

Here’s how the URSA Cine 12K performs at -3.5 stops with only practical light sources…
 |
 |
 |
Without Correction | Pushing Up Exposure in DaVinci | With Correction

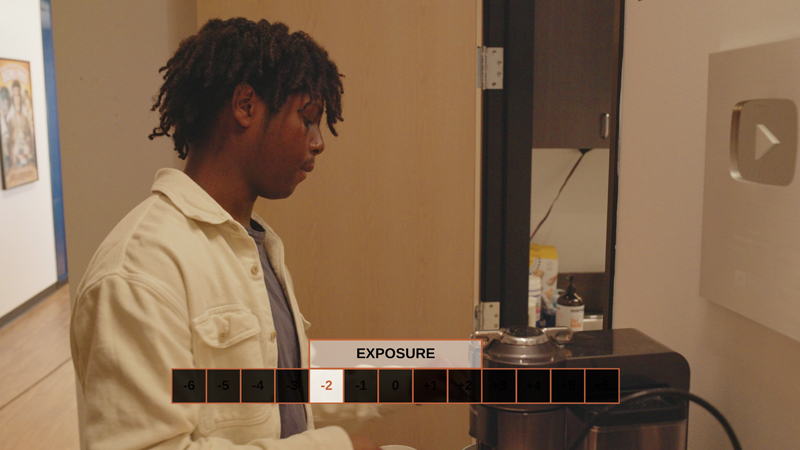

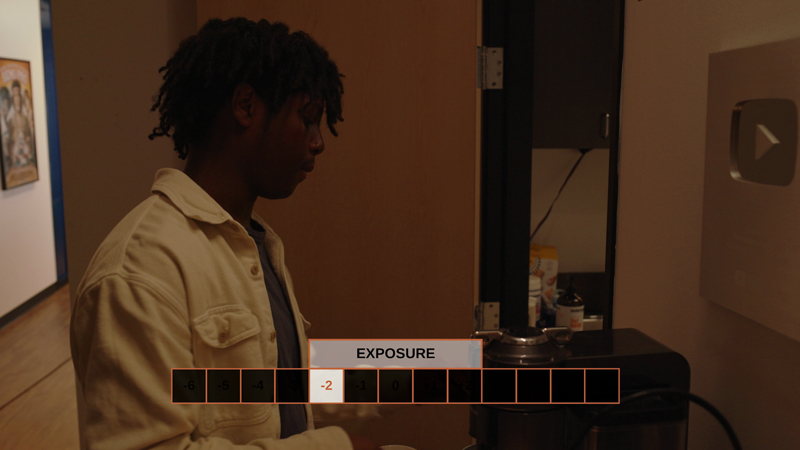

At the coffee machine he is -2 stops.
 |
 |
 |
Without Correction | Pushing Up Exposure in DaVinci | With Correction

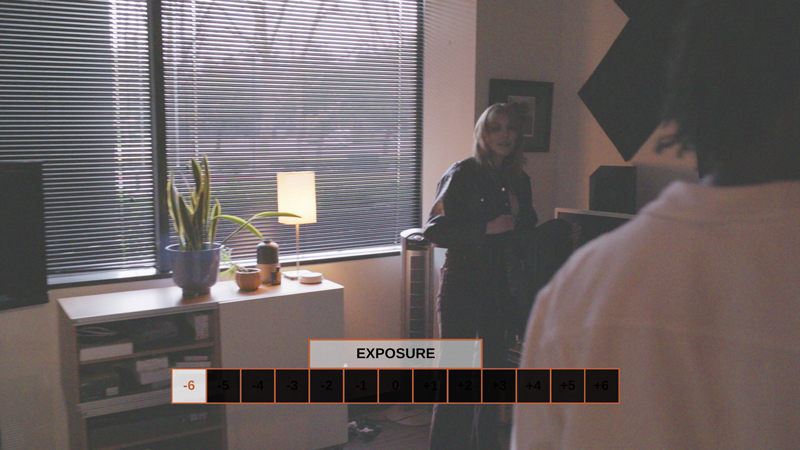

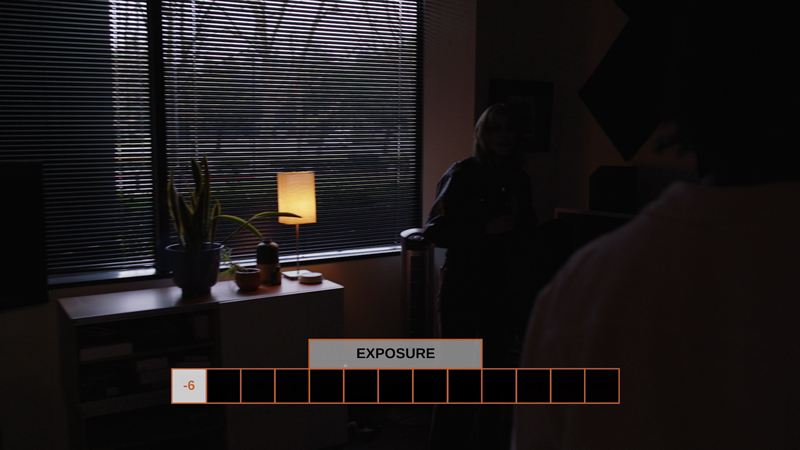

The team identified the limit at around six stops under, where highlight detail, particularly on brighter skin tones or specular sources, began to clip noticeably.
 |
 |
Without Correction | Pushing Up the Exposure in DaVinci

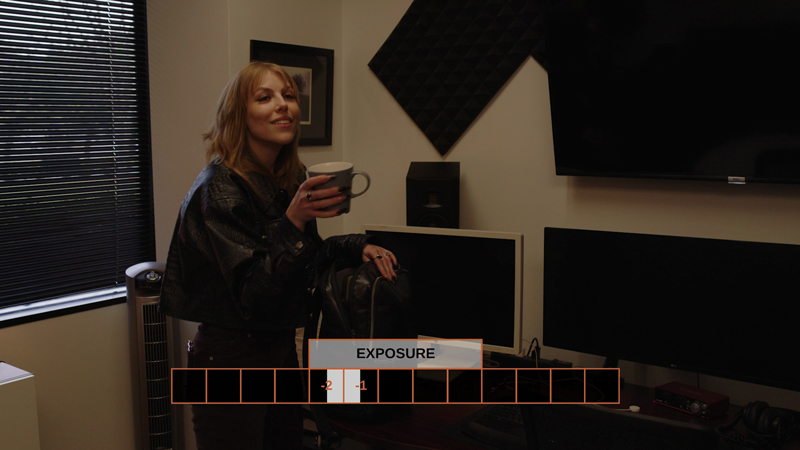

Then, when the light turns on, it’s at -1.5 stops.
 |
 |
Without Correction | Very Slight Correction
However, reaching a full five stops over while retaining significant detail in bright window sources and skin highlights is an impressive feat, showcasing the camera’s wide latitude and gentle highlight roll-off, reminiscent of film. Dave Cole concluded, “That’s a lot of usable range… This is really impressive.”
Watch the video to see how the URSA Cine 12K LF latitude as they continue to track down the hallway into additional lighting scenarios!
A DIFFERENT APPROACH: RGBW VS BAYER
Shane emphasized that Blackmagic didn’t just follow the norm. Unlike most cinema cameras (ARRI, RED, Sony) that use traditional Bayer pattern sensors (typically a 2×2 grid with double the green photosites), the URSA Cine 12K LF employs a unique RGBW sensor with a 6×6 grid pattern.
In this design, half the photosites are dedicated to capturing pure luminance (White), while the other half are equally divided among Red, Green, and Blue.
THE POWER OF WHITE PIXELS: SENSITIVITY WITHOUT DUAL ISO
Why this radical design? According to Shane, the white pixels are the key. They let in significantly more light (he estimates 3x more) than filtered color pixels. This inherently boosts the sensor’s overall light sensitivity and is a major contributor to the camera’s impressive low-light performance and wide dynamic range (the 16 stops discussed earlier).
This enhanced sensitivity allowed Blackmagic to achieve excellent results without implementing a Dual Native ISO system. Thereby, it maximizes the total dynamic range available at the sensor’s optimal native sensitivity (around ISO 800). The over/under test confirmed this, showing usable detail an incredible nine stops down in the shadows (6 stops under + 3 stops push).
PIXEL BINNING EXPLAINED: SMART DOWNSCALING
The 6×6 grid also enables sophisticated pixel binning. When downscaling from 12K to 8K or 4K, instead of just throwing pixels away (“pixel skipping,” which can cause moiré and artifacts), the camera intelligently combines data from diagonal pairs of photosites (two Reds together, two Greens, two Blues, and two Whites).
Shane highlighted the remarkable result: a resolution loss of only 0.7% when going from 12K to 8K RAW. This process not only preserves incredible detail but also maintains the full dynamic range. It also speeds up the sensor readout at 8K, further minimizing rolling shutter.
THE WORKFLOW ADVANTAGE: A 50MM IS ALWAYS A 50MM
Crucially, this pixel binning happens across the entire sensor area. Unlike sensor windowing or cropping used by some cameras, the URSA Cine 12K LF maintains the same field of view regardless of the chosen resolution (12K, 8K, or 4K). As Shane put it, “a 50 is a 50.” This consistency simplifies lens choice and shot planning dramatically on set, eliminating the need for complex crop factor calculations when switching resolutions.
DISRUPTIVE TECHNOLOGY: ECHOES OF THE DSLR REVOLUTION?
“Blackmagic has reinvented sensor technology,” Shane declares, “and this is disruptive… I really haven’t felt this since I picked up the Canon 5D in 2009.”
Overall, the “Official Demo” of the Blackmagic URSA Cine 12K LF concludes with palpable excitement. And why shouldn’t it? Compared to the potential impact of the Canon 5D Mark II and the DSLR revolution that Shane helped pioneer, the URSA Cine 12K seems like the next big thing for filmmakers who want a powerful camera system at an affordable price tag.
Shane sees the camera’s combination of groundbreaking sensor technology, high performance, professional features, and aggressive price point as truly disruptive. He believes it will push other manufacturers to innovate and potentially make high-end features more accessible, much like how DSLRs forced traditional camera companies to adapt. He even linked it to the subsequent vintage lens rehousing boom, suggesting that democratizing high-end capture technology fuels creativity across the board.
THE BOTTOM LINE (PART 4): LATITUDE, INNOVATION & IMPACT
This final segment of the demonstration powerfully showcases the Blackmagic URSA Cine 12K LF Latitude along with its impressive capabilities. The over/under tests confirm its exceptional, highly usable dynamic range, retaining detail deep into the shadows and rolling off highlights gracefully.
Shane Hurlbut, ASC’s passionate breakdown reveals the innovative thinking behind the unique RGBW sensor and pixel binning technology — choices designed not just for high resolution, but for maximizing latitude, workflow efficiency, and overall image quality across multiple resolutions without compromise. It paints a picture of a camera poised to make a significant impact on the industry.
